Tandon TM262
Storage RH-4E8ADetails
| Manufacturer | Tandon |
|---|---|
| Model | TM262 |
| Condition | For parts/repair |
| Source | Mike, Ipswich |
| Acquired | 2026-09-12 |
| Installed in | RH-4UJN |
| Reference | http://www.bitsavers.org/pdf/tandon/TM362_and_TM262_Product_Specification_1985.pdf |

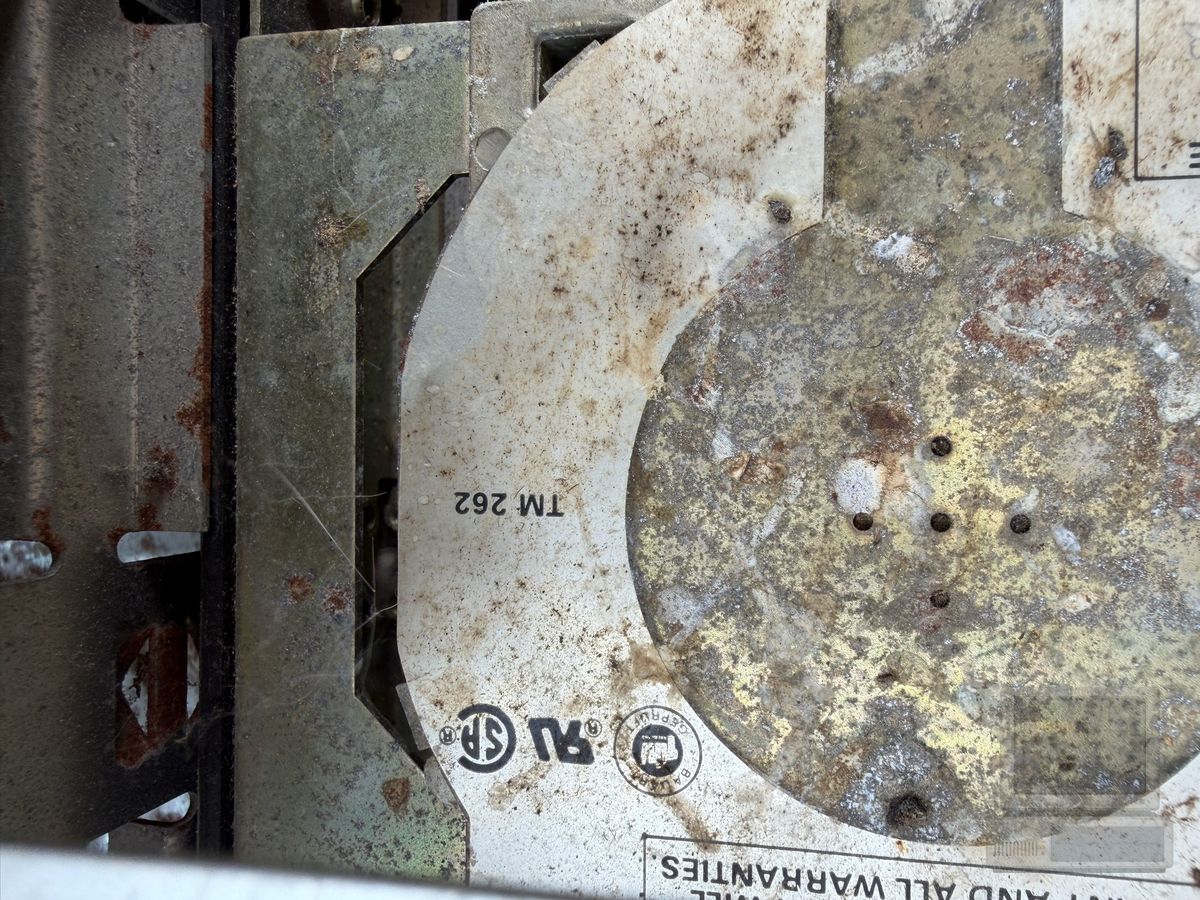

| Notes | The hard disk fitted in the Tandon 286 (RH-4UJN). Identified by "TM 262" stamped on the drive casting; the warranty seal over the spindle is intact but filthy. Geometry and interface are from the Tandon TM262 product specification, not from testing this drive. Condition: extremely poor. The whole drive is caked in dirt and rodent debris, with rust spots and mould-like staining across the casting and the label. Untested and not to be spun up as found. |
Specs
| Kind | Hard disk |
|---|---|
| Interface | MFM |
| Protocol | MFM |
| CHS | 615/4/17 |
| Role | Fixed disk |
| Form factor | 5.25" |
| Capacity | 21 MB (unformatted, ~20 MB formatted) |
Projects
Files
No files for this one yet.
History
| 2026-09-12 |
source: (empty) → Mike, Ipswich
acquired_date: (empty) → 2026-09-12
|
| 2026-09-12 |
added 1 photo(s)
|
| 2026-09-12 |
wanted for Work required by item: Tandon PCA (RH-8DMQ)
|
| 2026-09-12 |
created
|
Photographs
1
