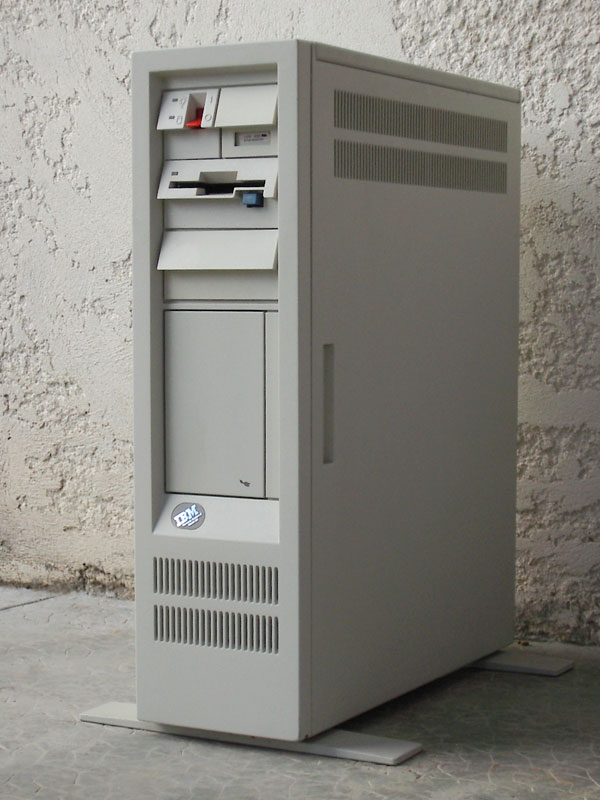

Introduced in 1987, the IBM PS/2 Model 80 was IBM’s flagship Micro Channel workstation and the first IBM PC to use Intel’s 80386 processor. It showcased technologies that would define high-end PCs for years, including 32-bit computing, advanced memory management and high-performance graphics options. Although Micro Channel was ultimately rejected by the wider clone market, the Model 80 remains one of IBM’s most technically ambitious and influential personal computers, prized today for its engineering and distinctive architecture.

Details

Manufacturer	IBM
Model	PS/2 Model 80
Year	1987
Form factor	proprietary
Chassis	tower
CPU	Intel 386-20
Installed RAM	4 MiB
Drives	1GB CF
OS	MS DOS
Condition	Working
Source	Facebook Marketplace
Acquired	2026-05-15
Reference	https://en.wikipedia.org/wiki/IBM_PS/2_Model_80

Machine

Catalogue model	PS/2 Model 80 (8580) — IBM PS/2, 1987

Motherboard

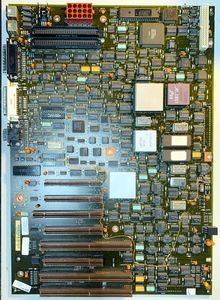

RH-CQF8 · Motherboard

IBM PS/2 Model 80 (8580-series) (Type 2 Planar)

Chipset

IBM PS/2 Model 80 T1-T2 chipset

CPU family

386-class

Form factor

proprietary

Slots

8× MCA

BIOS

IBM 15F6600 / 15F6597

Onboard video

VGA IBM 72X8287

Ports

Floppy, Serial, Parallel, PS/2 keyboard, PS/2 mouse

Parts

3

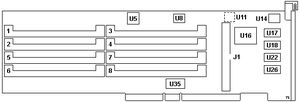

RH-HQ5T · Memory

Intel Above Board MC

Size

8 MiB

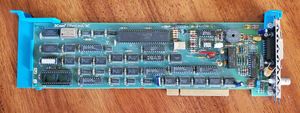

RH-4MZX · Network

3Com Etherlink/MC

Chip

Intel P82586-6

Interface

MCA

Connector

AUI, BNC

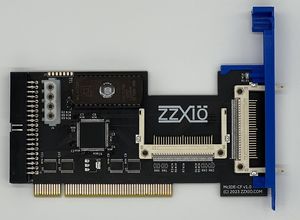

RH-5MT0 · I/O

Zzxio MCIDE-CF

Chip

CPLD

Interface

MCA

Ports

2× IDE

Files

No files for this one yet.
