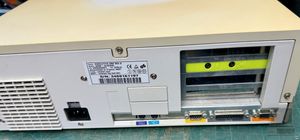

Packard Bell Executive MM 923 D

RH-9239

Packard Bell at its mid-nineties height, when it was the biggest name in retail PC sales and almost unknown to anybody who bought direct: a Pentium on an LPX board with the graphics, the sound and the CD-ROM already fitted, so the carton held the whole computer. Assembled in France for the European market. Ordinary then and uncommon now — they were bought to be used up, and nobody thought to keep one.

Details

ManufacturerPackard Bell
ModelExecutive MM 923 D
Year1996

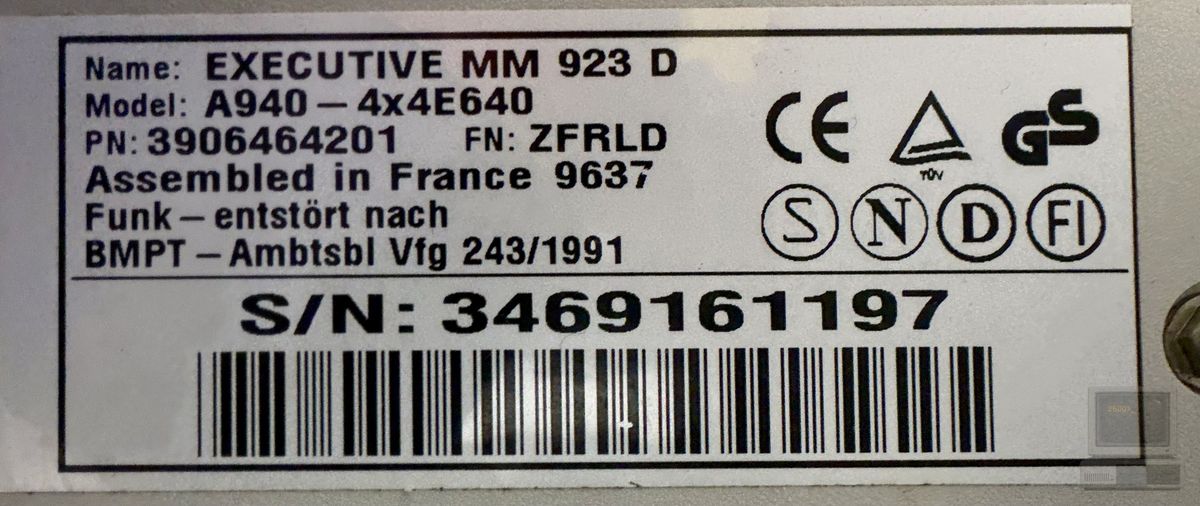

Serial3469161197
Form factorproprietary

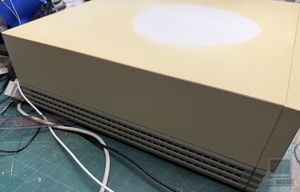

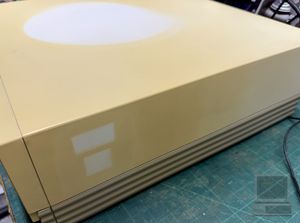

Chassisslimline desktop

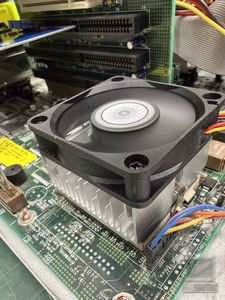

CPUIntel Pentium-100

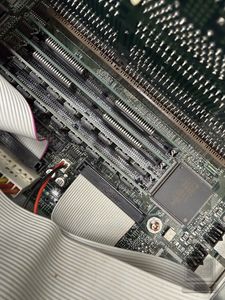

Installed RAM2× 4MiB 72-pin, 2× 16MiB 72-pin (40 MiB)
OSWindows 98
ConditionWorking
SourceTME Matt
Acquired2026-09-05
NotesCPU configured as 66MHz * 1.5.

Machine

Catalogue modelExecutive MM 923 D — Packard Bell, 1996
RegionEurope

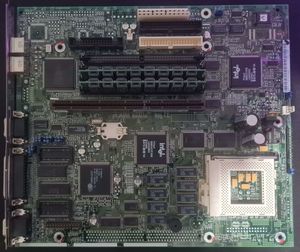

Motherboard

RH-TKTH · Motherboard
source site

Packard Bell Executive MM 923 D

Chipset
Intel 430FX
CPU family
Pentium-class
Form factor
proprietary
RAM slots
4× 72-pin SIMM
Slots
3× 16-bit ISA, 2× PCI
BIOS
AMI 1.00.07.CP0R
Onboard video
VGA CL-GD5440
Ports
2× IDE, Floppy, Serial, Parallel, PS/2 keyboard, PS/2 mouse
Cache
COAST

Parts

5
RH-R1KQ · Sound

Aztech AZT2316R

Chip
Aztech AZT2316R
Interface
16-bit ISA
FM
OPL
RH-0107 · Network

Intel Etherexpress Pro 100+ PCI

Interface
PCI

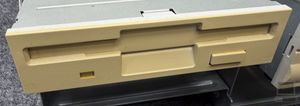

RH-4AC2 · Storage

Alps Electronic Co., LTD Df354H089C

Kind
Floppy/Gotek
Interface
34-pin floppy
Media
3.5"
Form factor
3.5"
Size
1.44MB

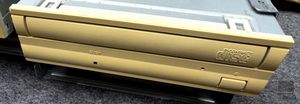

RH-UXWM · Storage

NEC CDR-1300A

Kind
Optical
Interface
IDE
Protocol
ATAPI
Media
CD-ROM
Colour
Off-white
Yellowing
Yellowed
Form factor
5.25"

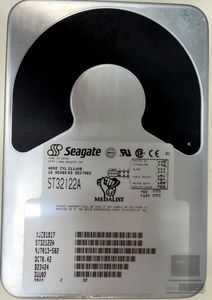

RH-1000 · Storage

Seagate ST32122A

Kind
Hard disk
Interface
IDE
Protocol
ATA
Capacity
2062368 KiB
CHS
4092/16/63
Speed
5400 rpm
Form factor
3.5"

Projects

Files

No files for this one yet.

History

2026-09-09
added 1 photo(s)
2026-09-06
linked part RH-0107
2026-09-06
board detached as RH-TKTH, and linked back in
2026-09-06
linked part RH-R1KQ
2026-09-06
linked part RH-0146
2026-09-06
notes: (empty) → CPU configured as 66MHz * 1.5.
2026-09-06
added 1 photo(s)
2026-09-06
note battery fitted
2026-09-06
linked part RH-UXWM
2026-09-06
linked part RH-4AC2
2026-09-06
created

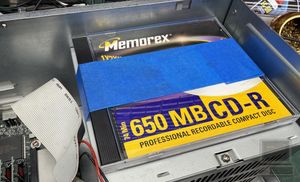

Photographs
