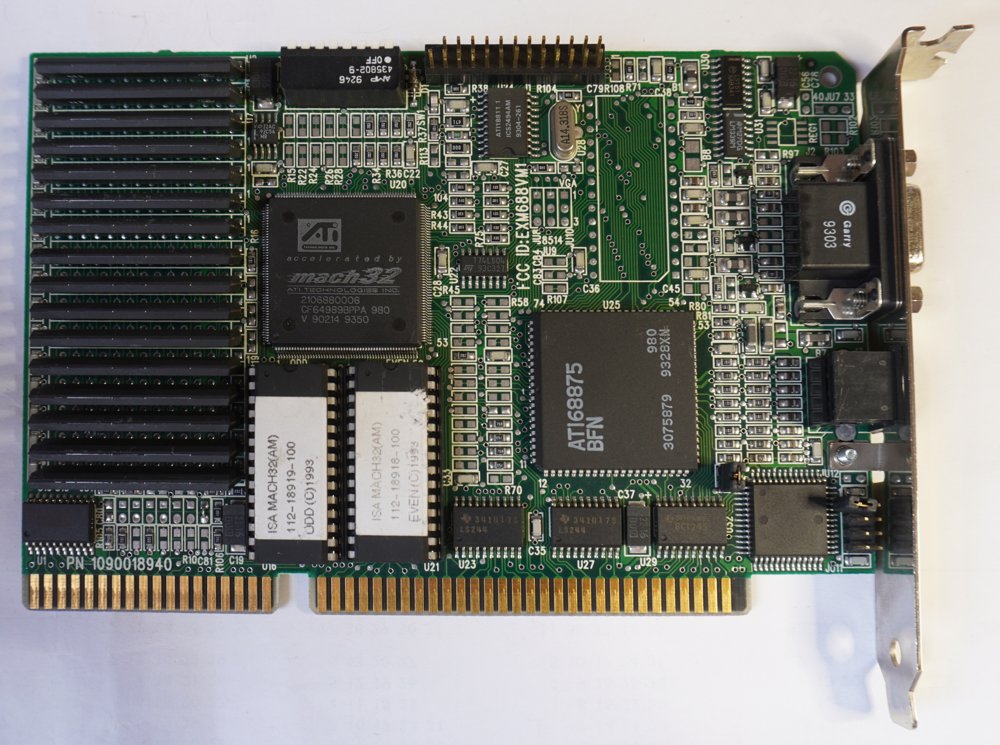

The ISA ATI Mach32 arrived as Windows was becoming the primary PC interface, shifting the emphasis from DOS graphics performance to fast, hardware-accelerated desktop rendering. Combining a VGA controller with a 2D accelerator on a single card, it offered capabilities previously found only on expensive workstation hardware. Although VLB and PCI versions were faster, the ISA model brought high-performance Windows graphics to the enormous installed base of existing PCs.

Details

Manufacturer	ATI
Model	Graphics Ultra Pro
Year	1994
Condition	Working
Reference	https://theretroweb.com/expansioncards/s/ati-graphics-ultra-pro

Specs

Chip	ATI Mach 32
Interface	16-bit ISA
Connector	VGA
Memory	2 MiB

Files

No files for this one yet.

History

2026-07-29	flagged a photo as a reference image
2026-07-24	fetched a photo from the reference
2026-07-24	created
