Supermicro Super P6DBS Rev 2.00
Motherboard RH-U7NJDetails
| Manufacturer | Supermicro |
|---|---|
| Model | Super P6DBS Rev 2.00 |
| Year | 1998 |
| Serial | DB57061 |
| Condition | Untested |
| Source | Mike, Ipswich |
| Acquired | 2026-09-12 |
| Reference | https://theretroweb.com/motherboards/s/supermicro-p6dbs |

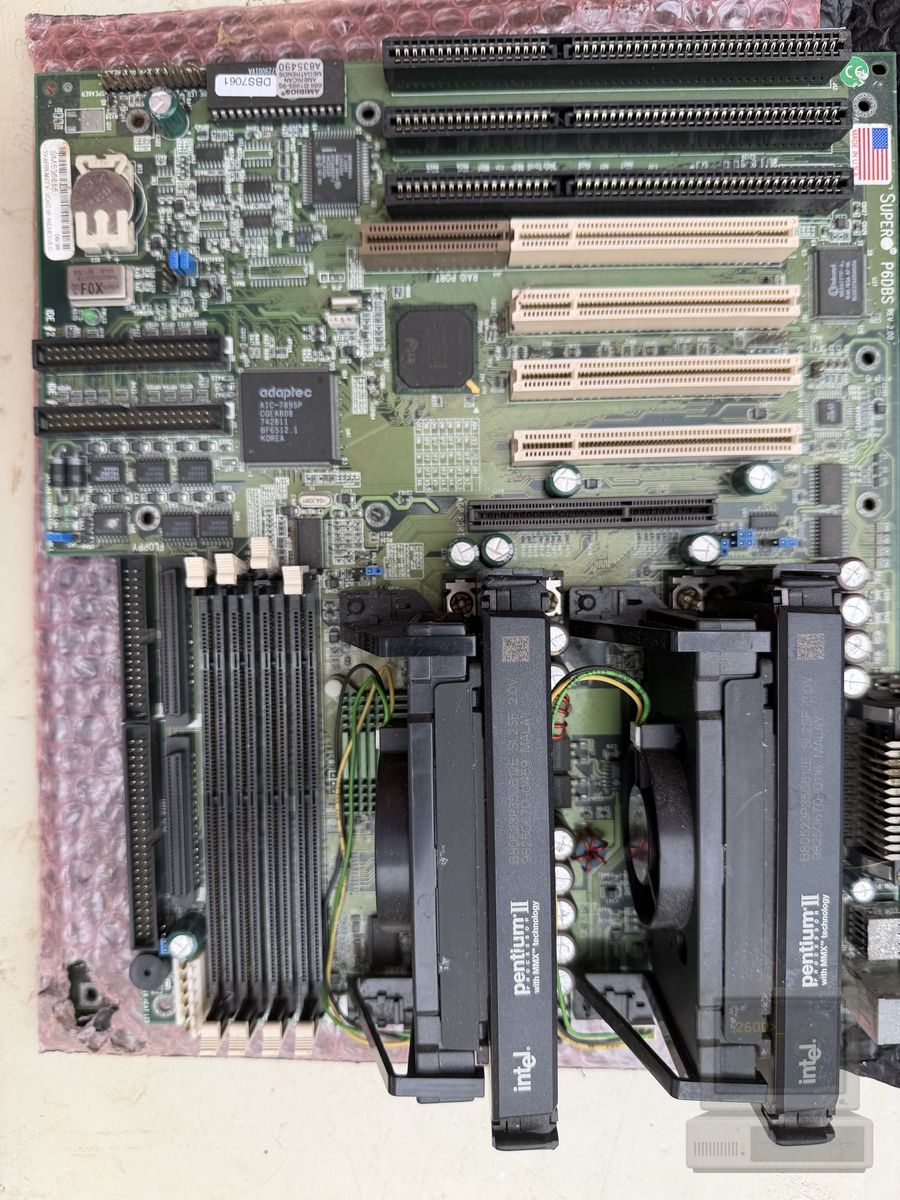

| Notes | Dual Slot 1 server/workstation board, silkscreened "SUPER P6DBS REV 2.00", MADE IN USA. Onboard Adaptec AIC-7895P dual-channel Ultra Wide SCSI (date code 742811), AMIBIOS sticker "666 (1)965-95 / A8354490", and an "SM53666E — warranty void if removed" sticker. The serial recorded here is the DB57061 sticker beside the BIOS label. Fitted as found: two Intel Pentium II cartridges, both B80523P350512E SL2SF 2.0V (350MHz, 512K L2, 100MHz FSB — one Malay, one Malay/Philippines marking), each with its fan, plus the two retention mechanisms. The CPUs are not recorded as separate objects; they are noted here as what came with the board. Slot count follows the Supermicro manual for the P6DBS (4 PCI, 3 ISA with one shared, plus AGP) and matches what is visible in the photo. Coin-cell RTC battery fitted. Untested. |
Specs
| Chipset | Intel 440BX (Seattle) |
|---|---|
| CPU family | Pentium II/III-class |
| Form factor | ATX |
| RAM slots | 4× 168-pin DIMM |
| Slots | 4× PCI, 3× 16-bit ISA, AGP |
| BIOS | AMI |
| Ports | 2× IDE, Floppy, 2× Ultra Wide SCSI (Adaptec AIC-7895) |
Files
No files for this one yet.
History
| 2026-09-12 |
added 1 photo(s)
|
| 2026-09-12 |
created
|

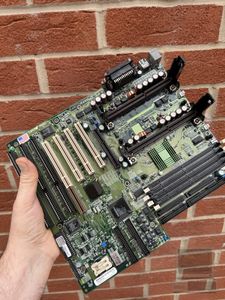

Photographs
