Olivetti M4-6X / BA2054
Olivetti M4-6X / BA2054

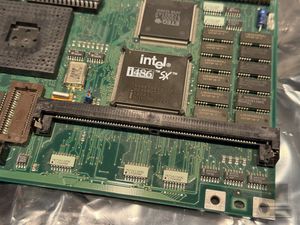

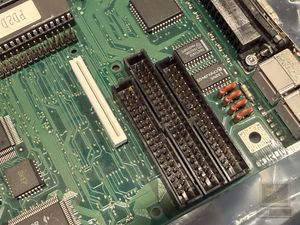

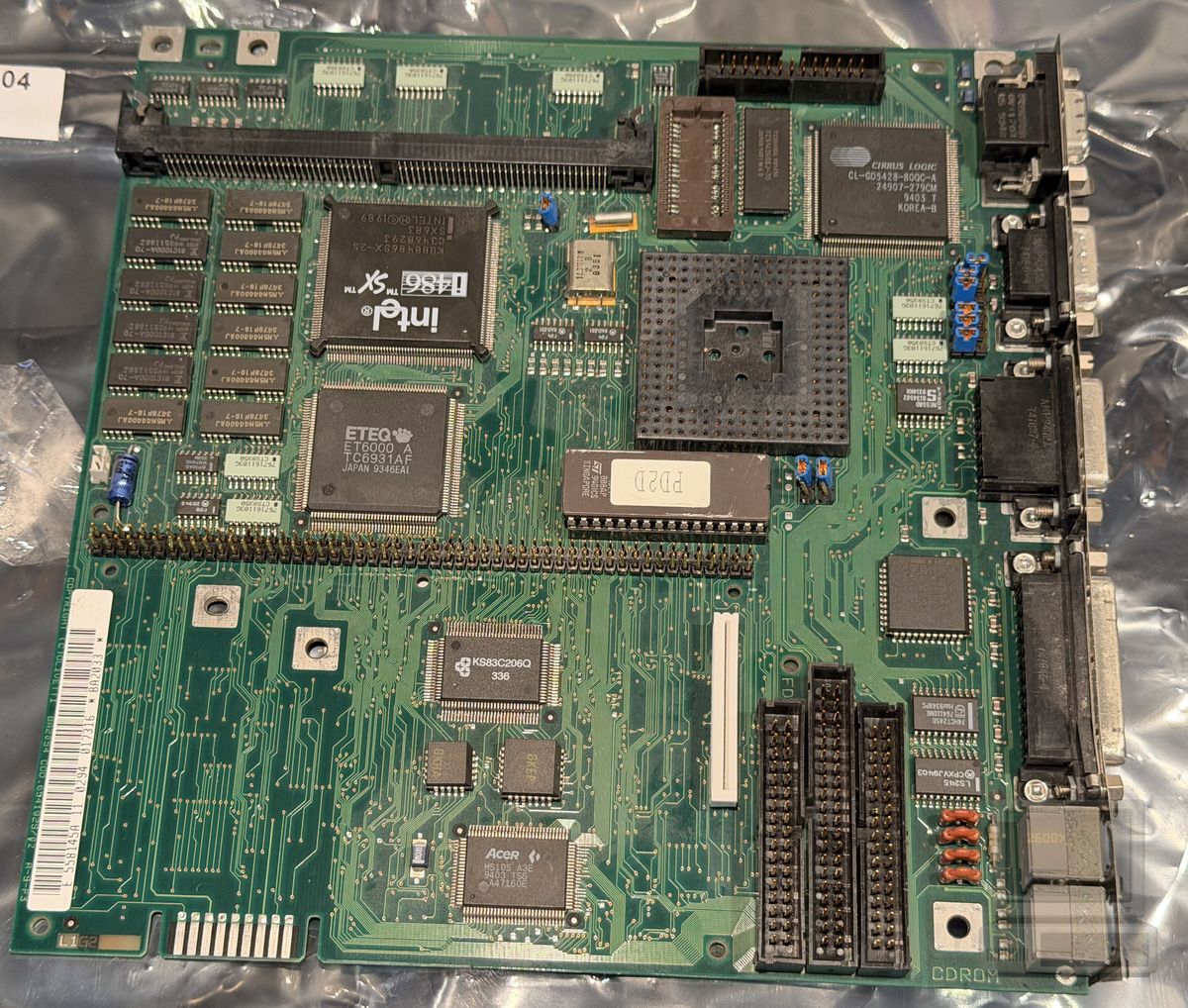

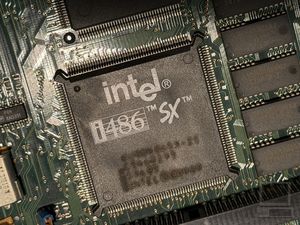

Motherboard RH-PHJWThis 1994 Olivetti M4-6X/BA2054 motherboard is interesting.There is no power connector, RTC battery or ISA slot. It has a soldered-on 486 SX 25 with 4 MiB RAM, Cirrus Logic VGA and a peculiar 34-pin CD-ROM interface. Several documented BIOS revisions. Neat. Very Olivetti!
Details
| Manufacturer | Olivetti |
|---|---|
| Model | M4-6X / BA2054 |
| Year | 1994 |
| Condition | Working |
| Source | eBay order no. 10-15085-18434 |
| Acquired | 2026-08-31 |
Specs
| Chipset | ET6000 |
|---|---|
| CPU family | 486-class |
| RAM slots | 72-pin SIMM |
| Onboard RAM | 4 MiB |
| Onboard video | VGA CL-GD5428 |
| Ports | IDE, Floppy |
Files
1History
| 2026-09-01 |

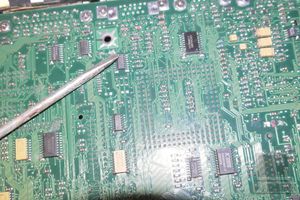

note capacitor missing
|
| 2026-09-01 |

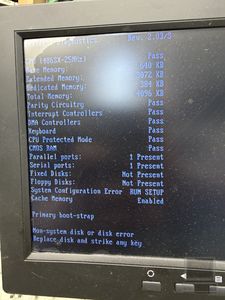

note confirmed, will POST and boot with wiring as below note.
|
| 2026-09-01 |
condition: For parts/repair → Working
|
| 2026-09-01 |

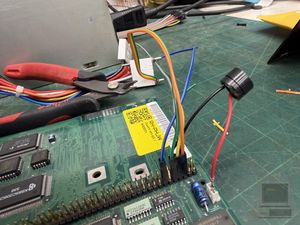

note 5v .. .. GND .. GND .. GND GND .. GND .. PG ..
|
| 2026-09-01 |
summary: This 1994 Olivetti M4-6X/BA2054 motherboard is interesting. It has a soldered-o… → This 1994 Olivetti M4-6X/BA2054 motherboard is interesting.There is no power co…
|
| 2026-08-31 |

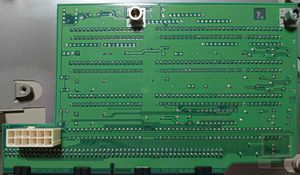

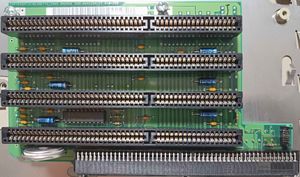

note found photos of the riser...
|
| 2026-08-31 | |
| 2026-08-31 |
summary: (empty) → This 1994 Olivetti M4-6X/BA2054 motherboard is interesting. It has a soldered-o…
|
| 2026-08-31 |
added 1 file(s)
|
| 2026-08-31 |
rotated 3 photos
|
| 2026-08-31 |
cropped a photo
|
| 2026-08-31 |
rotated a photo
|
| 2026-08-31 |
added 5 photo(s)
|
| 2026-08-31 |
source: EBay → eBay order no. 10-15085-18434
acquired_date: (empty) → 2026-08-31
|
| 2026-08-31 |
created
|
