Western Digital WD1002A-WX1

I/O RH-CRB3

The Western Digital WD1002A-WX1, introduced in 1988, was an 8-bit ISA MFM hard disk controller for IBM PC/XT and compatible systems. It featured an onboard BIOS with advanced formatting options, including bad-track management ability, and compatibility with both XT and some AT systems made it one of the definitive late-generation MFM controllers for vintage PCs.

Details

ManufacturerWestern Digital
ModelWD1002A-WX1
Year1985
ConditionWorking
Installed inRH-K3MP
Referencehttps://theretroweb.com/expansioncards/s/western-digital-wd1002a-wx1
NotesBIOS chip patched for 615x8x17 for NEC D5142A.

Specs

Chip WD11C00-JT
Interface 8-bit ISA
Ports 2× MFM

Files

No files for this one yet.

History

2026-08-06
fetched a photo from the reference
2026-08-02
created

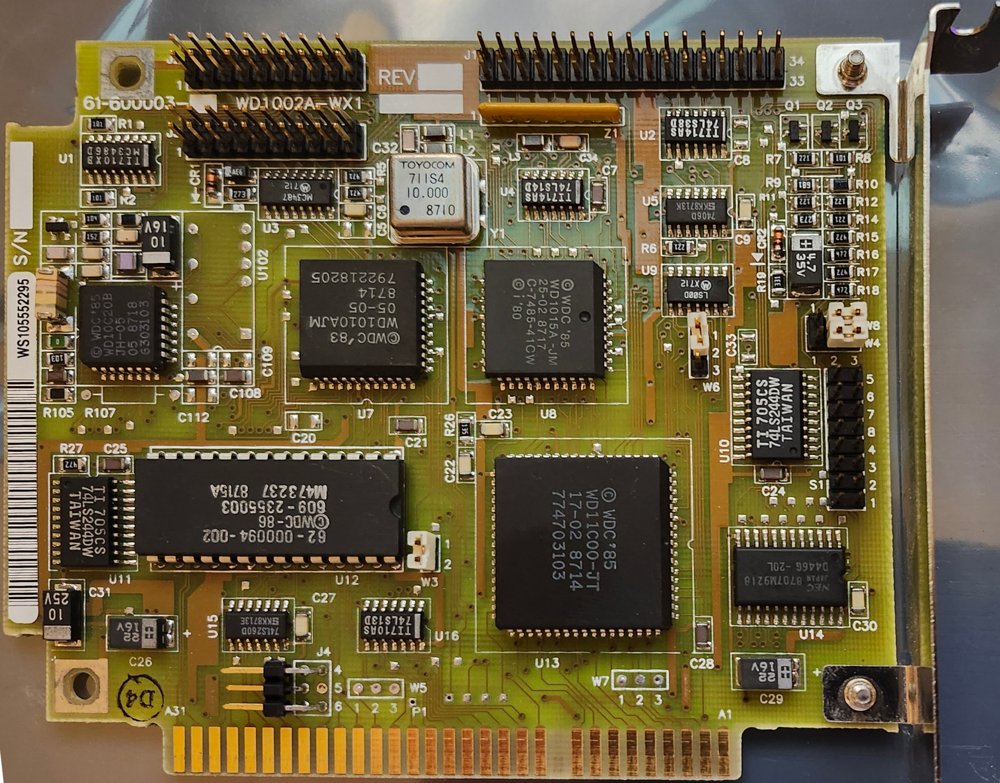

Photographs

1
RH-CRB3 source site
