Unlike ATA/IDE, the controller electronics remained largely on the expansion card, while the drive itself was relatively simple. XTA used an 8-bit data path and typically connected via a 40-pin ribbon cable, making it suitable for systems based on the 8088 and 8086 processors. Capacities generally ranged from 10 MB to around 40 MB.

Details

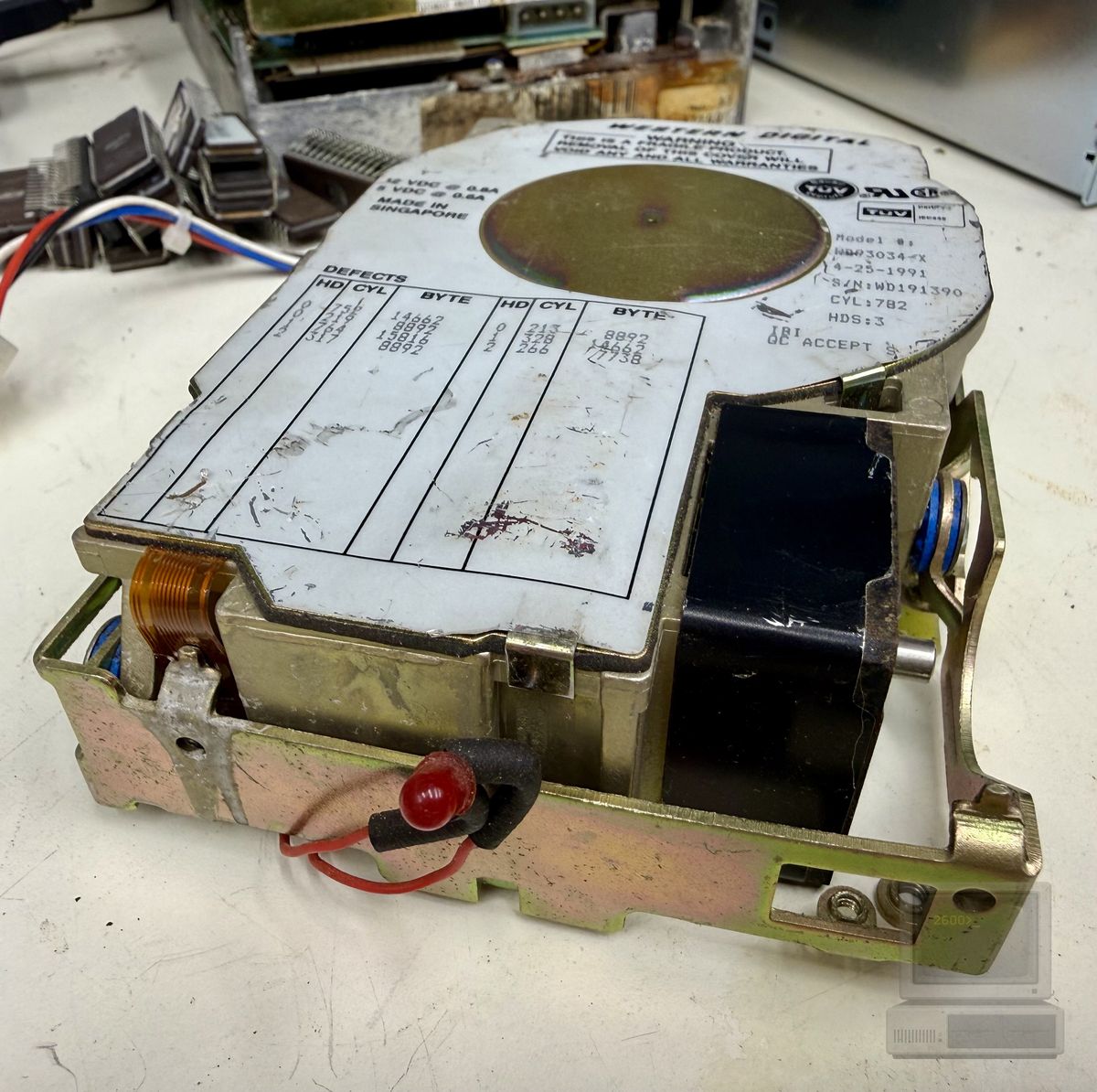

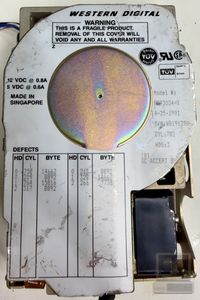

Manufacturer	Western Digital
Model	WD93034-X
Year	1988
Condition	Working
Source	Farm Pete
Acquired	2026-07-11
Reference	https://www.minuszerodegrees.net/manuals/Paper%20Works%20Computers/The-Ref-Version-4.3.pdf

Specs

Kind	Hard disk
Interface	IDE
Protocol	XTA
Capacity	32.4 MiB
CHS	782/3/27
Speed	3600 rpm
Form factor	3.5"

Files

No files for this one yet.

History

2026-08-11

Speed: 3000 rpm → 3600 rpm Form factor: (empty) → 3.5"
