Intel PBA 519800-006
- Chipset
- Intel xPress Server
- CPU family
- 486-class
- Form factor
- ATX-ish
- RAM slots
- 4× 72-pin SIMM
- Slots
- 8× 16-bit ISA

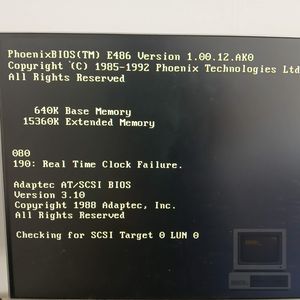

- BIOS
- Phoenix
- Onboard video
- VGA
- Ports
- IDE, Floppy, 2× Serial, Parallel, PS/2 keyboard, PS/2 mouse

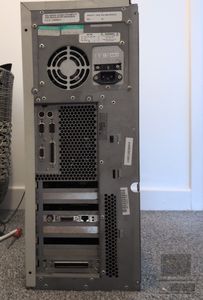

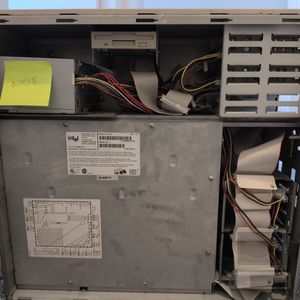

Intel Xpress System Deskside LX Base 8TE16F
RH-R7F4Details
| Manufacturer | Intel |
|---|---|
| Model | Xpress System Deskside LX Base 8TE16F |
| Year | 1993 |
| Form factor | ATX-ish |
| Chassis | full-tower |
| CPU | Intel 486 DX/2 66 |
| TopBench | 115 |
| Installed RAM | 2× 8MiB 72-pin (16 MiB) |
| Condition | Working |
| Source | eBay order no. 19-14976-33373 |

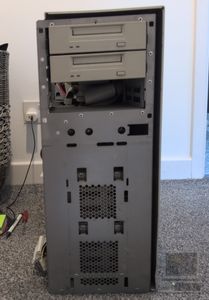

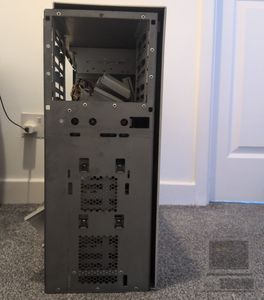

| Notes | Outer case and front panel are missing. I believe it may be possible to add a 16x02 LCD display for the display of BIOS messages. Someone has extracted this from a Windows HLP file which includes information on this and other similar Intel servers. |
| Reference | http://66.113.161.23/~mR_Slug/deviceInfo/Intel/xPress/help-file-manual/XLX_TRM.html |

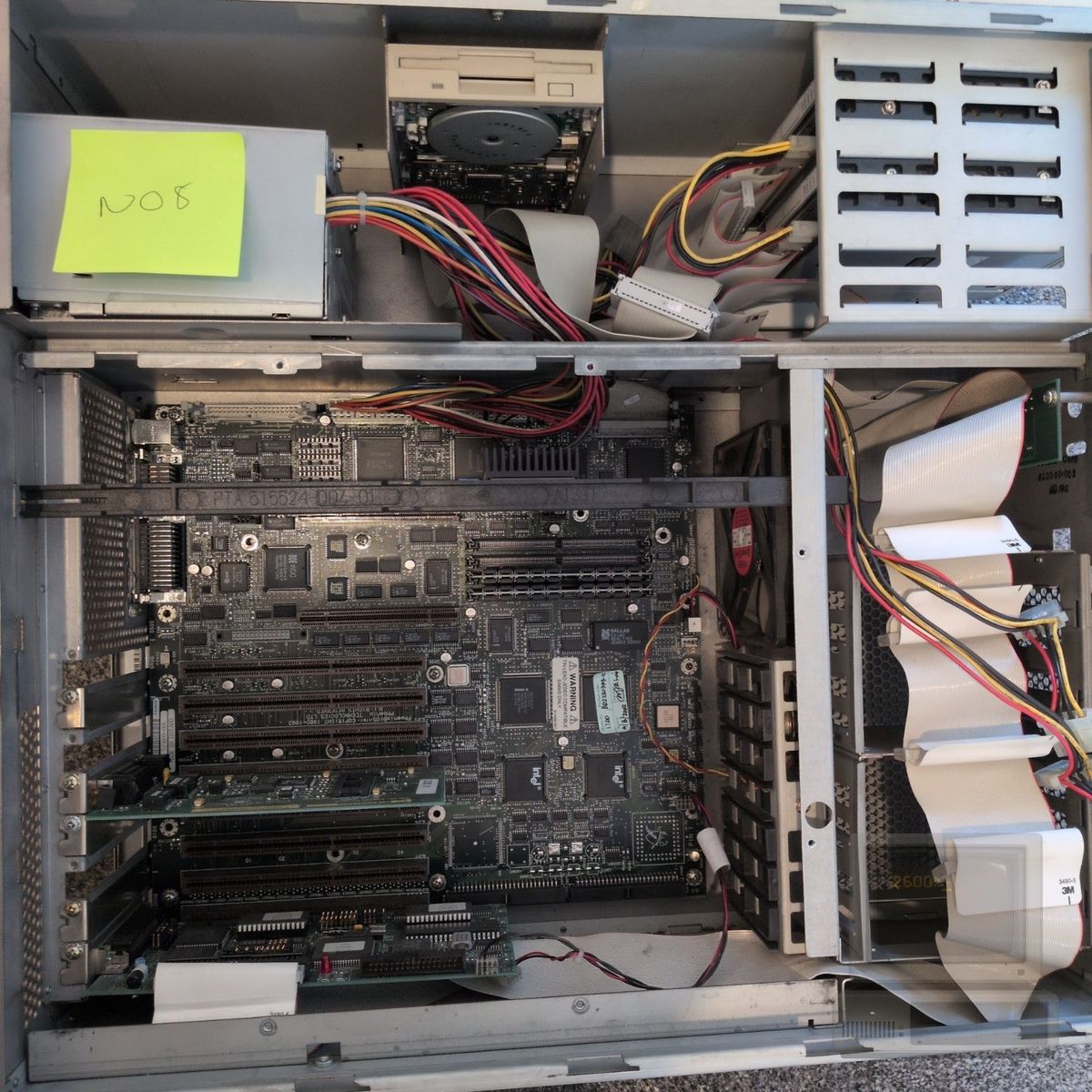

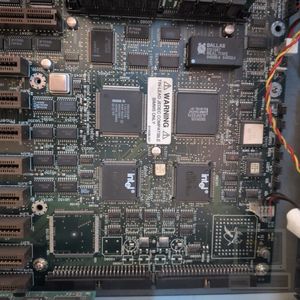

Motherboard
Parts
7

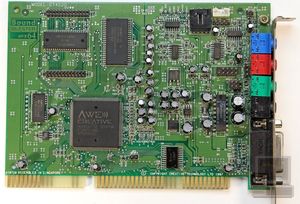

Creative Labs Sound Blaster AWE64 CT4520
- Interface
- 16-bit ISA

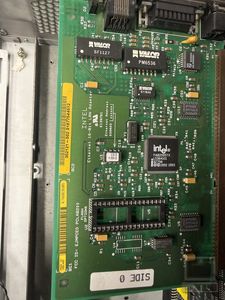

Intel Pro/10+ ISA
- Chip
- Intel FA82595TX
- Interface
- 16-bit ISA
- Connector
- 10BASE-T, AUI, BNC

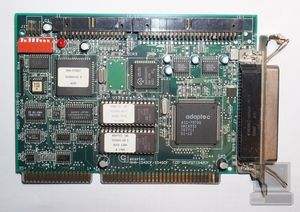

Adaptec AHA-1540CF
- Interface
- 16-bit ISA
- Ports
- 2× SCSI, Floppy

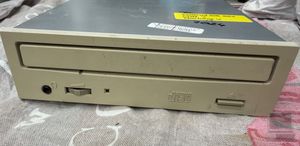

Hitachi CDR-7730
- Kind
- Optical
- Interface
- IDE
- Protocol
- ATAPI
- Media
- CD-ROM
- Speed
- 4×
- Colour
- Off-white
- Yellowing
- Yellowed
- Form factor
- 5.25"

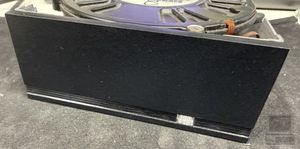

Micropolis 2210
- Kind
- Hard disk
- Interface
- SCSI
- Protocol
- SCSI
- Capacity
- 1056 MiB
- Speed
- 5400 rpm
- Colour
- Black
- Form factor
- 3.5"
- CHS
- 2372/9

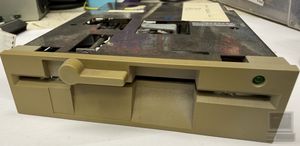

Mitsumi / Newtronics D509V2
- Kind
- Floppy/Gotek
- Interface
- 34-pin floppy
- Media
- 5.25"
- Colour
- Grey-beige
- Yellowing
- Lightly yellowed
- Form factor
- 5.25"
- Size
- 1.2MB

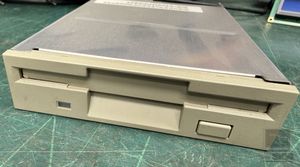

Teac FD-235HF
- Kind
- Floppy/Gotek
- Interface
- 34-pin floppy
- Media
- 3.5"
- Colour
- Off-white
- Form factor
- 3.5"
- Size
- 1.44MB
Files
1X-Series Deskside_LX System.pdf
Filed under
Intel Xpress System Deskside LX Base 8TE16F
History
| 2026-09-01 |
note Just noticed this is ex-BT.
|
| 2026-08-15 |
linked part RH-3V4D
|
| 2026-08-15 |
linked part RH-V2DG
|
| 2026-08-15 |
notes: Outer case and front panel is missing. I believe it may be possible to add a 16… → Outer case and front panel are missing. I believe it may be possible to add a 1…
|
| 2026-08-15 |
added 1 file(s)
|
| 2026-08-15 |
notes: Outer case and front panel is missing. I believe it may be possible to add a 16… → Outer case and front panel is missing. I believe it may be possible to add a 16…
|
| 2026-08-15 |
cpu: Intel 486 DX → Intel 486 DX/2 66
|
| 2026-08-15 |
topbench: (empty) → 115
|
| 2026-08-15 |
linked part RH-12BC
|
| 2026-08-15 |
linked part RH-0093
|
| 2026-08-15 |
linked part RH-NNPU
|
| 2026-08-12 |
note Someone has extracted this from a Windows HLP file which includes information on this and other similar Intel servers. http://66.113.161.23/~mR_Slug/deviceInfo/Intel/xPress/help-file-manual/XLX_TRM.html
|
| 2026-08-12 |
notes: (empty) → Outer case and front panel is missing. I believe it may be possible to add a 16…
|
| 2026-08-12 |
model: Unknown Server → Xpress System Deskside LX Base 8TE16F
|
| 2026-08-12 |
source: (empty) → eBay order no. 19-14976-33373
|
| 2026-08-12 |
linked part RH-DD39
|
| 2026-08-12 |
linked part RH-0045
|
| 2026-08-12 |
linked motherboard RH-R007
|
| 2026-08-12 |
deleted 13 photos
|
| 2026-08-12 |
rotated a photo
|
| 2026-08-12 |
added 24 photo(s)
|
| 2026-08-12 |
created
|
Photographs
11
