Mitac MiStation 4052F/M
RH-0204| Manufacturer | Mitac |
|---|---|
| Model | MiStation 4052F/M |
| Year | 1992 |
| Chassis | slimline-desktop |
| CPU | Intel 486 SX 25 |
| Installed RAM | 8× 1MB 30-pin (8 MB) |
| Drives | 3.5-inch 1.44 MB floppy drive; SanDisk Extreme 4GB; Gotek floppy emulator (1.44MB) |
| Condition | Working |
| Source | Fuzzy Lee |
| Acquired | 2026-06-20 |
| Reference | https://theretroweb.com/motherboards/s/mitac-trigon-pwa-3060d-bd |
Motherboard

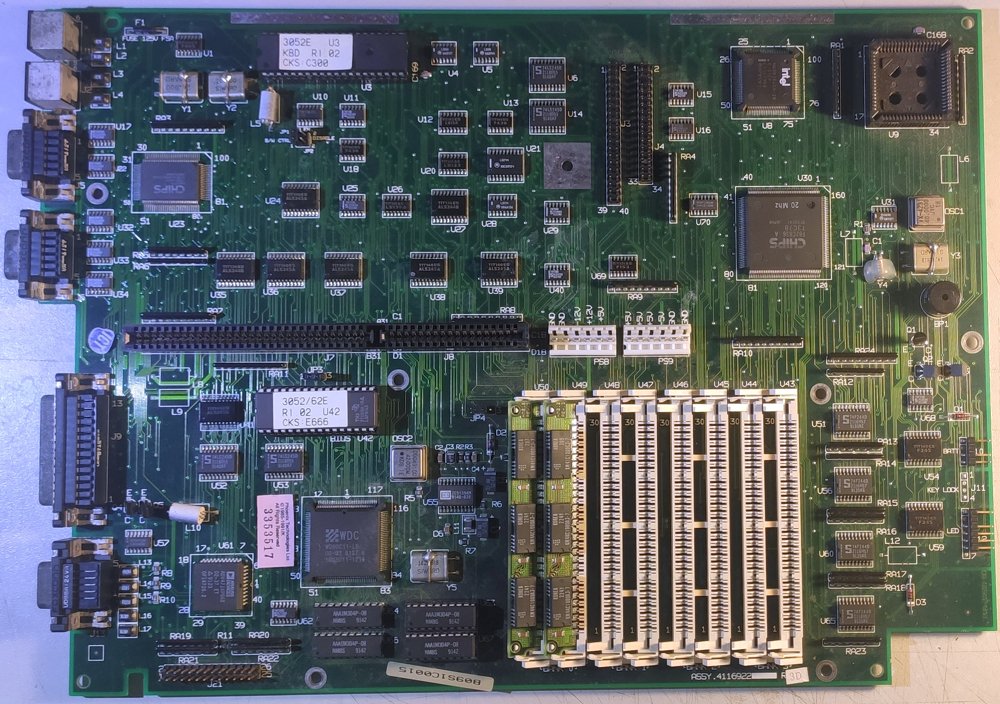

RH-0205 — Mitac PWA-3060D-BD Chipset: OPTi 82C496 | CPU family: 486 | Form factor: proprietary | RAM slots: 8× 30-pin SIMM | Slots: 16-bit ISA | BIOS: Phoenix | Cache: 0KB | Onboard video: WD 90C31A 256KB VGA | Ports: IDE, Floppy, 2× Serial, Parallel, PS/2 keyboard, PS/2 mouse
Parts (2)
| Asset | Type | Name | Specs |
|---|---|---|---|
| RH-0205 | Motherboard | Mitac PWA-3060D-BD | Chipset: OPTi 82C496 | CPU family: 486 | Form factor: proprietary | RAM slots: 8× 30-pin SIMM | Slots: 16-bit ISA | BIOS: Phoenix | Cache: 0KB | Onboard video: WD 90C31A 256KB VGA | Ports: IDE, Floppy, 2× Serial, Parallel, PS/2 keyboard, PS/2 mouse |

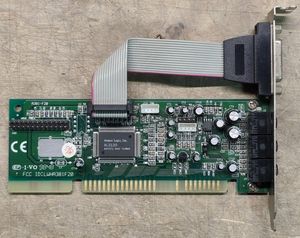

| RH-0214 | Sound | Advance Logic Inc. ALS120 | Chip: ALS120 | Interface: 16-bit ISA |
